Features

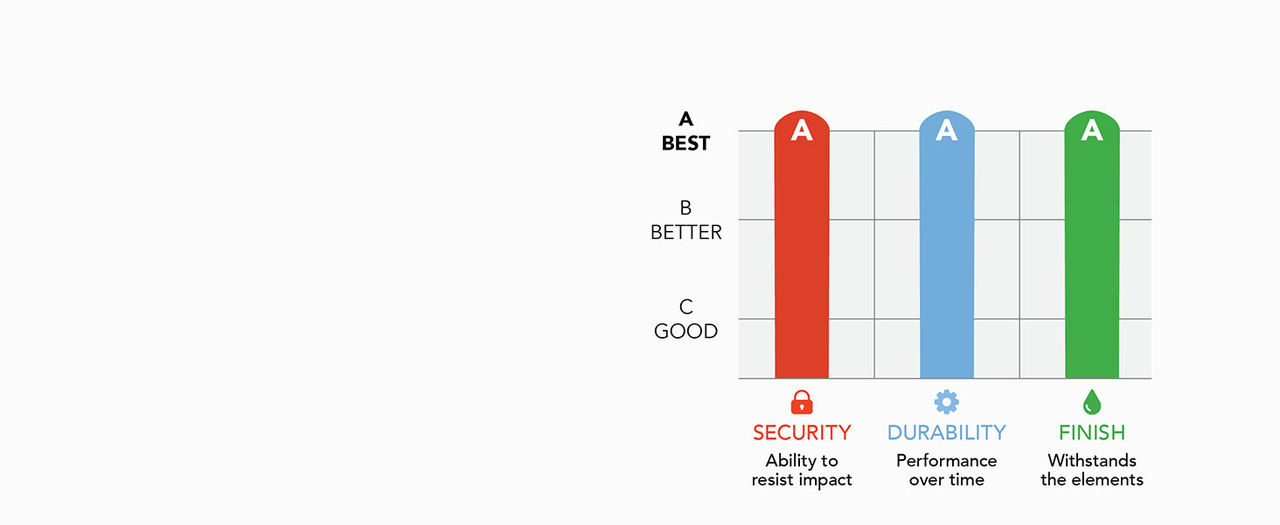

  • Graded Best in Residential Security, Durability, and Finish
  • ADVANCED SECURITY: Secure, encrypted connection; built-in, customizable alarm for door movement and forced entry attempts; fingerprint-resistant touchscreen; certified highest residential Security, Durability and Finish rating by BHMA industry experts
  • PEACE OF MIND: Lock and unlock from anywhere, mange up to 100 access codes, view lock history, receive customizable notifications and easily manage multiple locks at once - all when paired to the Schlage Home app and connected to a secure WiFi network
  • ANYWHERE ACCESS: With built-in WiFi compatibility, you can easily and securely connect your Schlage Encode Smart WiFI Lever to your home WiFi network to control and monitor your home from anywhere with the Schlage Home app
  • Certified Commercial Grade 1
  • WARRANTY: Limited lifetime mechanical and finish warranty and 3-year electronics warranty
  • BATTERY-OPERATED: Uses four AA batteries (included); up to six months of battery life with typical use; low-battery indicator on lock touchscreen and in Schlage Home app provides advance notice; one (1) physical backup key included
  • SECURE AND STYLISH: Available with traditional and contemporary styles in multiple finishes, the Schlage Encode smart lever offers premium quality and craftsmanship to complement a variety of homes and personal styles
  • COME AND GO WITH EASE: Auto-lock can relock the door for you with various time delay options in the Schlage Home app; convenient, control buttons on the interior of the lever let you quickly put it in an unlocked state for easy, frequent use
  • EASY INSTALL: Install in minutes with just a screwdriver, no hardwiring required; reversible levers fit right and left handed doors; fits standard doors with 1-3/8 in. to 1-3/4 in. door thickness and 2-3/8 in. or 2-3/4 in. backset
  • Learn more about grading.

Specifications

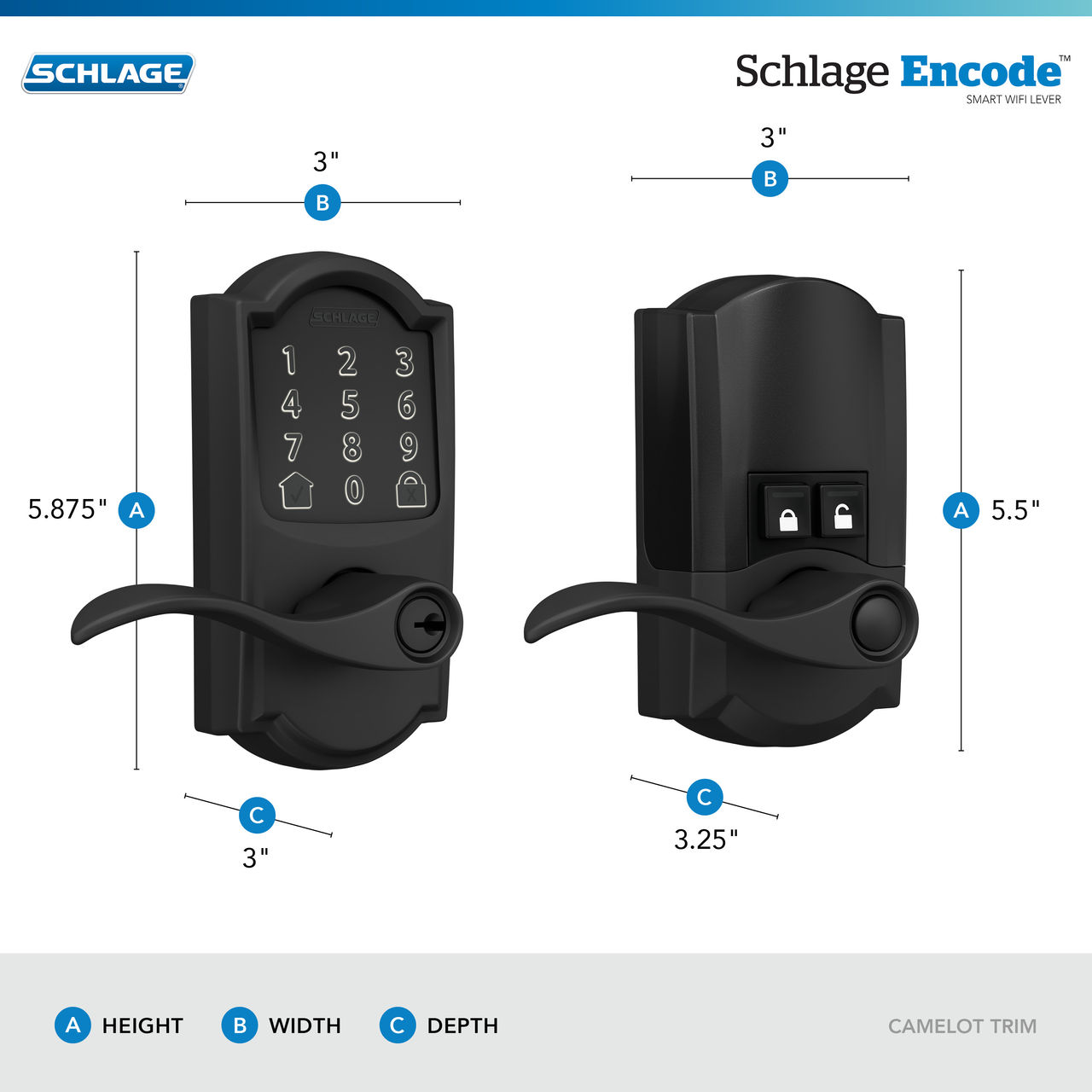

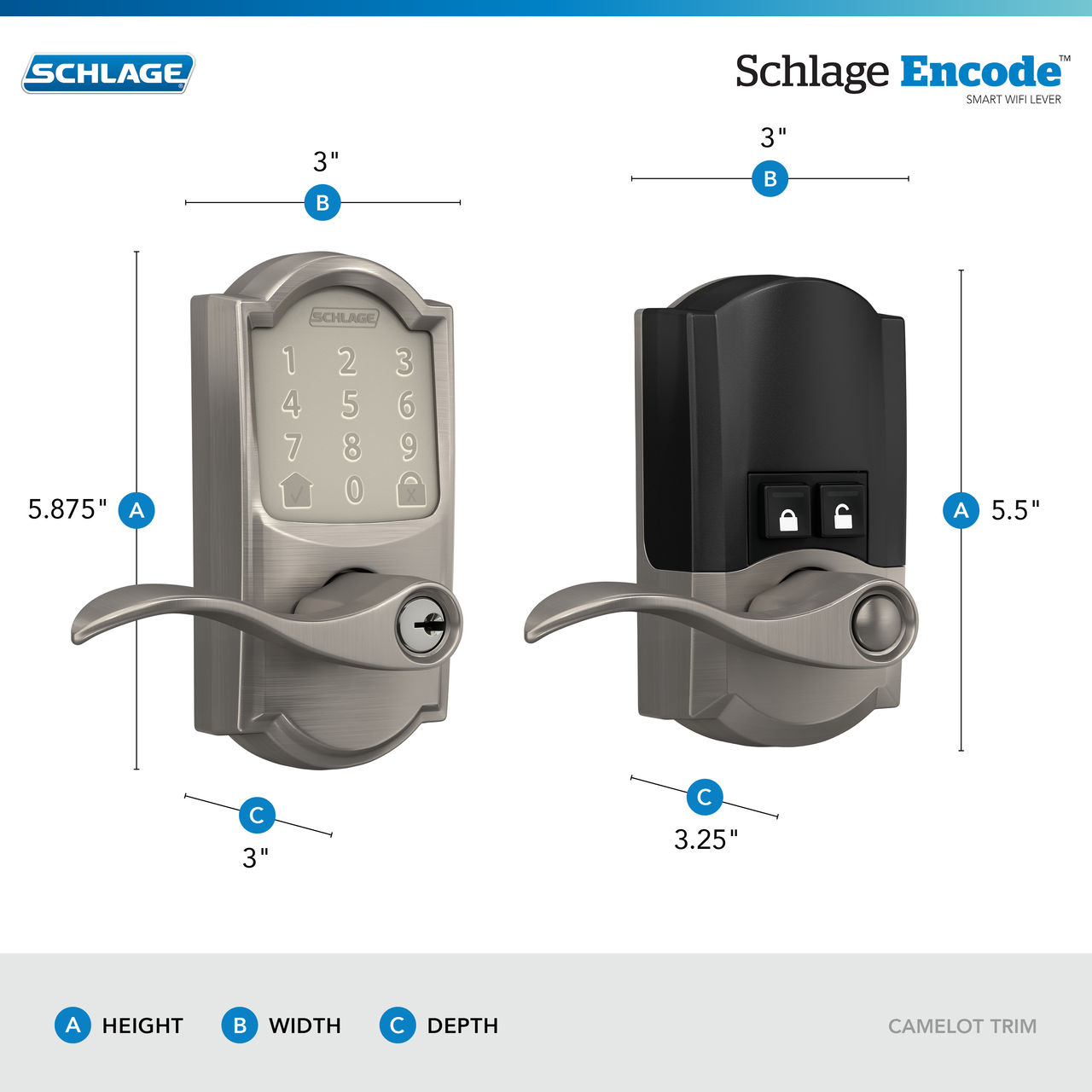

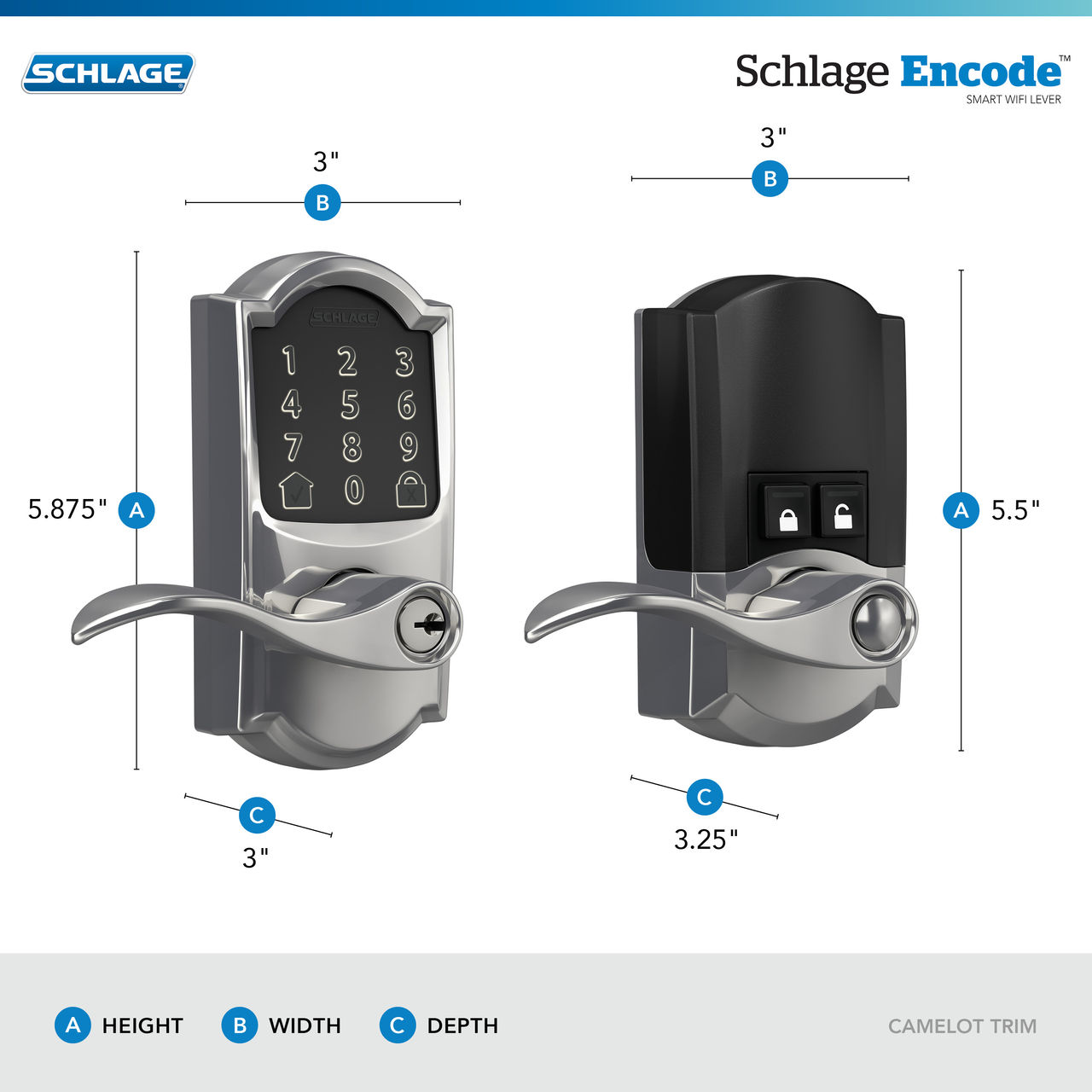

Interior Dimensions3" x 5-1/2" x 3-1/4"
KeyingKD, C Keyway - DR: WB VIS/Box offerend in KD only, WBC offered in KD, KA, & MK
CodesPre-set, unique 6-digit programming code, two pre-set unique 4-digit access codes, 100 code capacity
ADA CompliantYes
Battery Cell TypeUses 4 AA alkaline batteries
Warranty3-Year Electronics Warranty and Limited Lifetime Mechanical and Finish Warranty
Operating TemperaturesOperating Temperatures: Outside lock body (exterior mounted): -31F to 150.8F; Inside lock body (interior mounted): 14F to 120.2F
Exterior Dimensions3" x 5-7/8" x 3"
Backset (in)Universal Backset Adjusts to 2-3/8" (60mm) or 2-3/4" (70mm)
Door Thickness1-3/8 in (35 mm) to 1-3/4 in (45 mm)
WiFi compatibilityWiFi compatibility: requires 2.4GHz WiFi network
Certifications ANSI/BHMA A156.39 Grade AAA in Security, Durability and Finish

Works With
