Features

  • Graded Best in Residential Security, Durability, and Finish
  • SECURE CONNECTION: Secure encryption with S2 Security and Z-Wave Plus technology

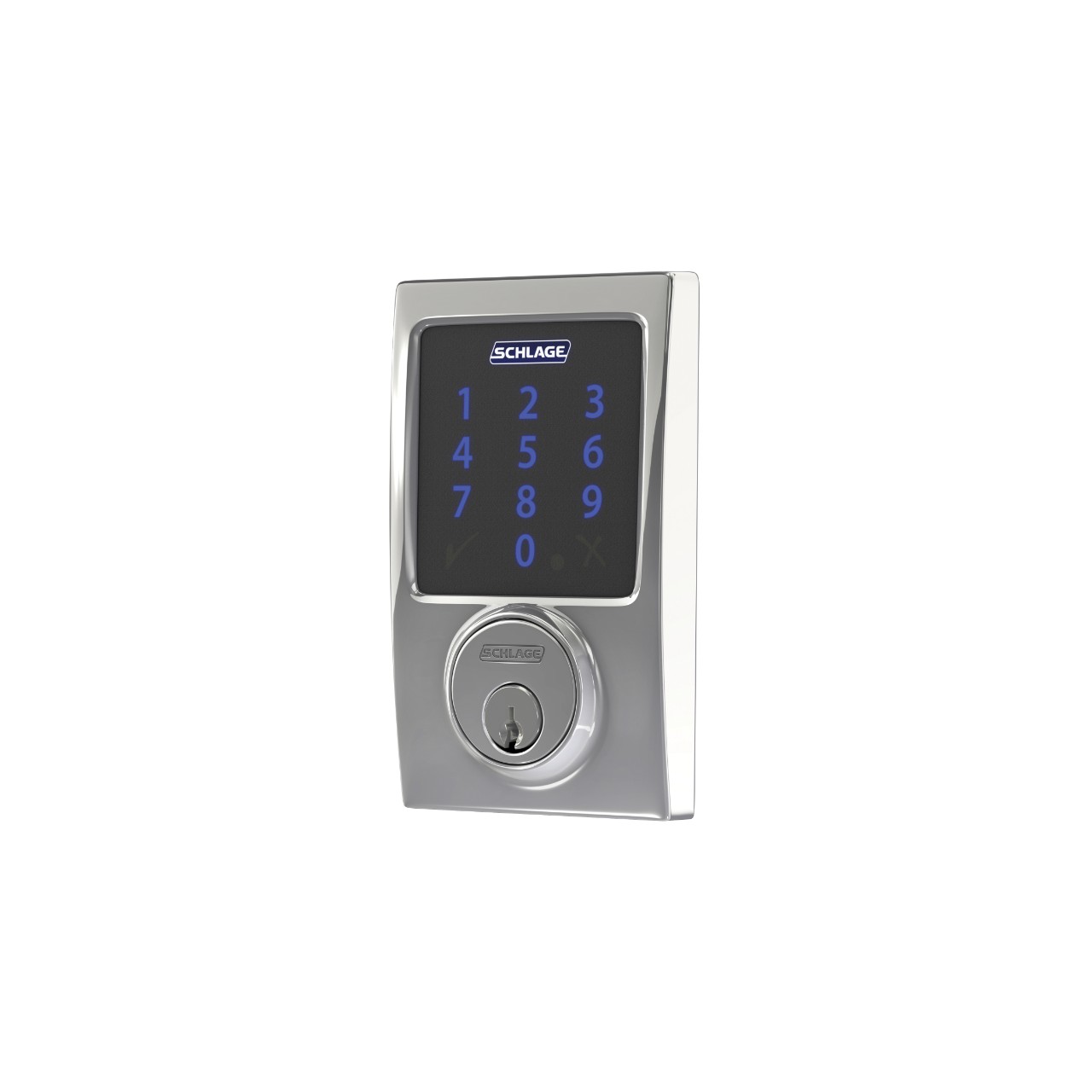

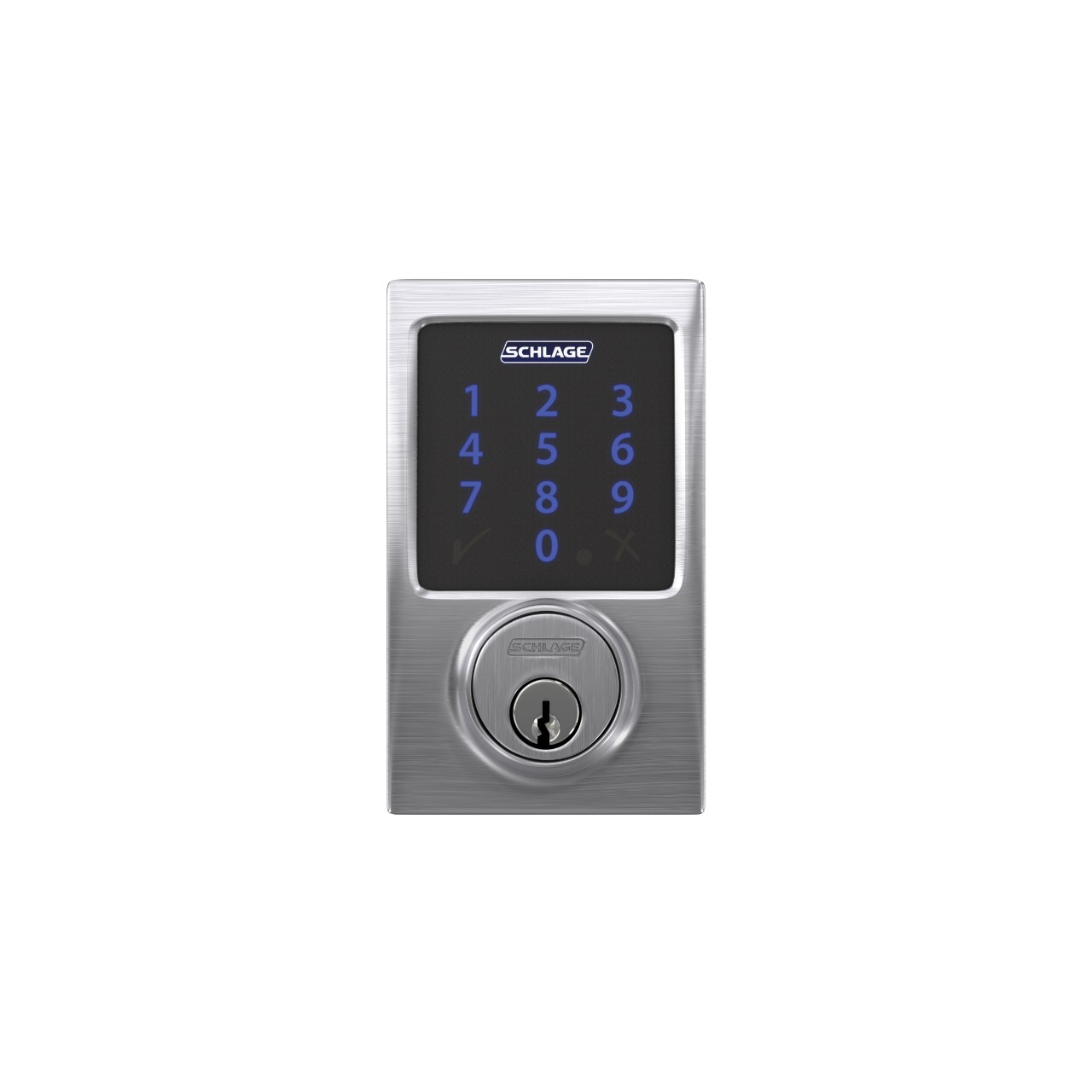

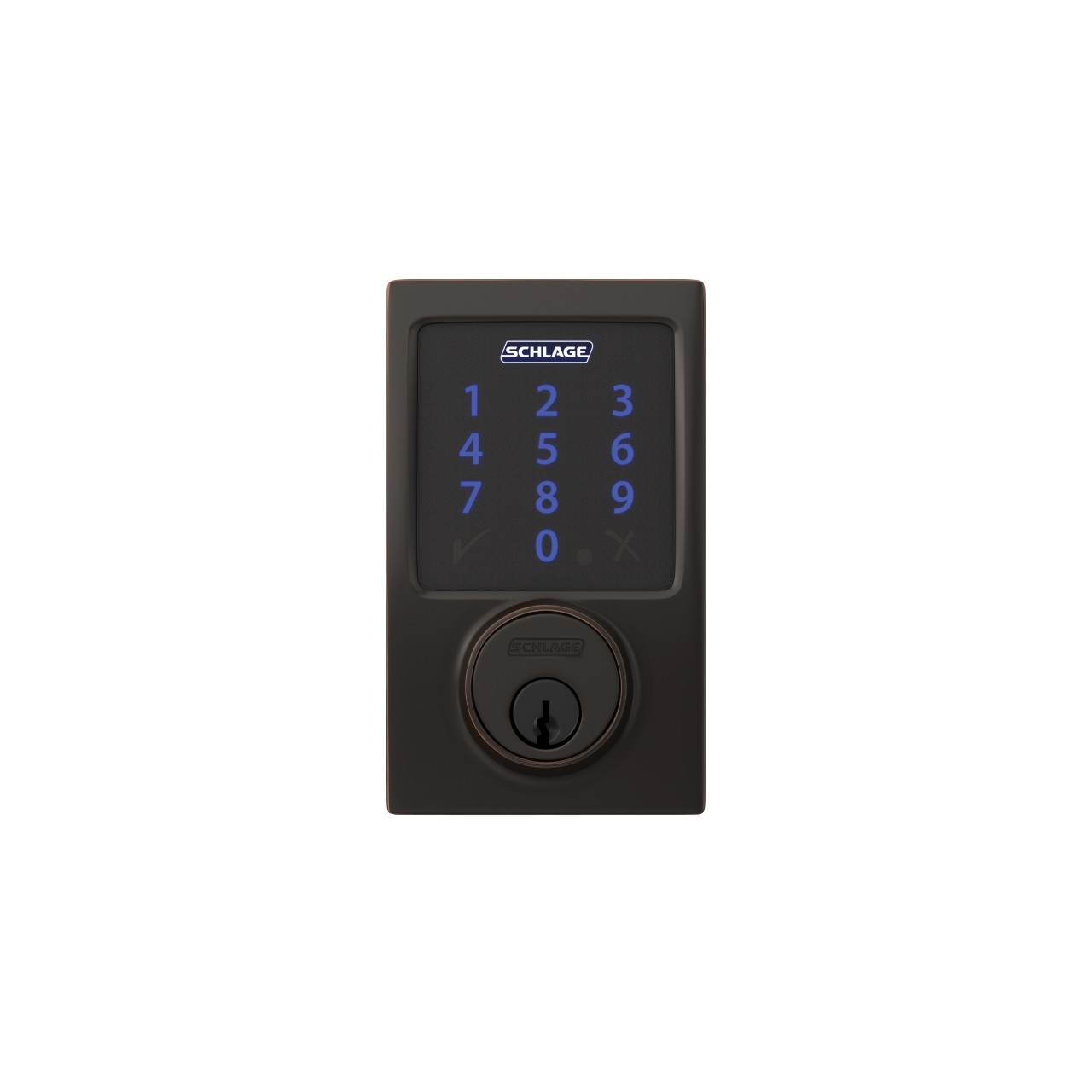

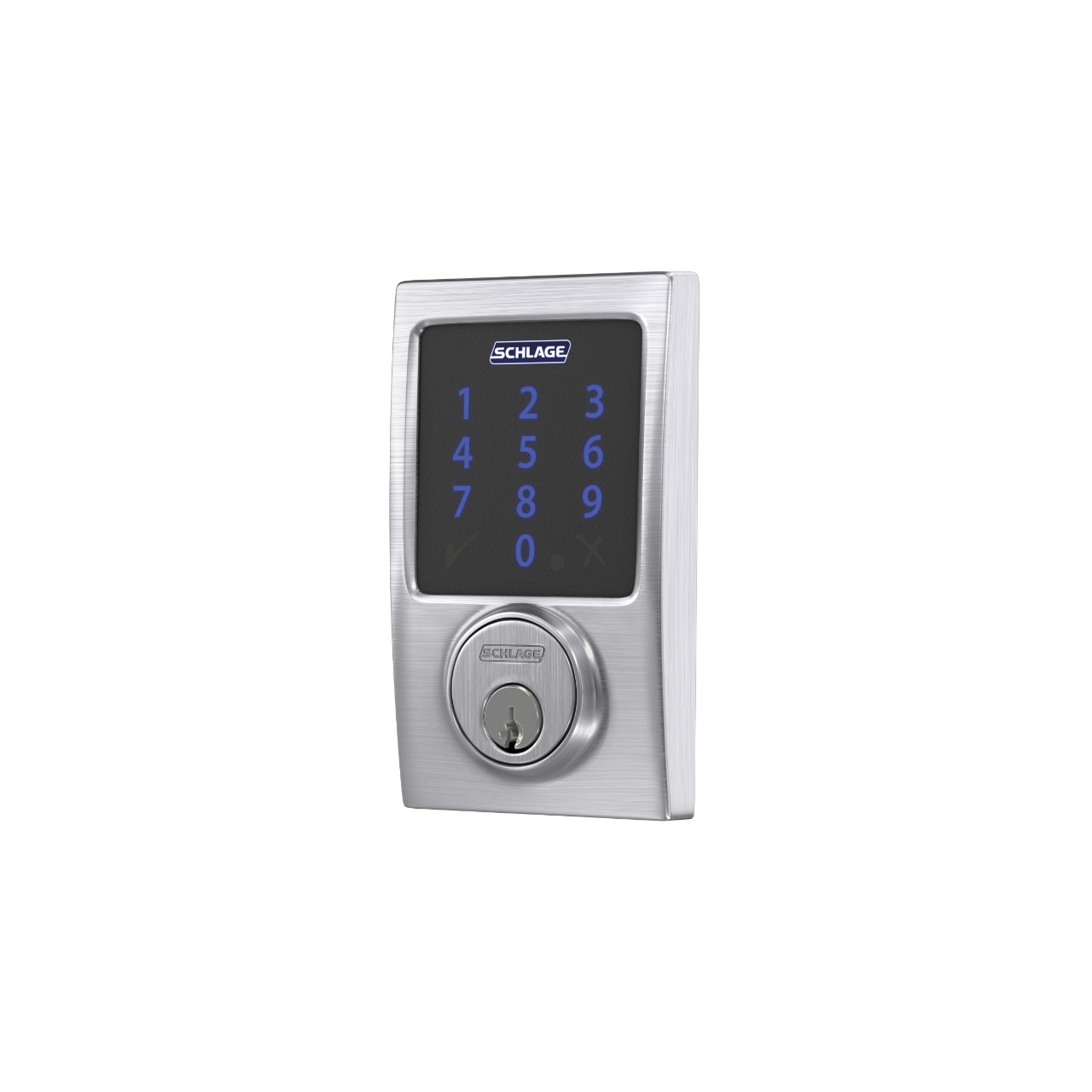

  • KEYLESS CONVENIENCE: Create up to 30 unique access codes for keyless entry; finger print resistant touchscreen; backlit keypad for ease of use in dark or low-light spaces
  • SMART HOME READY: Pair with a Z-Wave smart home or security system like Samsung SmartThings or Ring Alarm to lock and unlock from anywhere; Smart home hub or system sold separately and requires a internet connection
  • Certified Commercial Grade 1
  • WARRANTY: Limited lifetime mechanical and finish warranty and 3-year electronics warranty, see Schlage warranty for full details
  • EASY INSTALL: Install in minutes with just a screwdriver, no hardwiring required; Snap ‘n Stay design helps keep the lock on the door so both hands are free; fits standard doors with 1-3/8 in to 1-3/4 in door thickness and 2-3/8 in or 2-3/4 in backset
  • PREMIUM SECURITY: High-quality metal construction provides strength where it counts; built in alarm; certified to ANSI/BHMA Grade 1/AAA rating that offers trusted security and durability for residential and light commercial applications
  • BATTERY POWERED: Deadbolt operates by 4 AA batteries (included); low-battery indicator on lock screen offers advance notice; get up to 1 years of battery life with typical use; includes backup physical key
  • Learn more about grading.

Specifications

Interior Dimensions3" x 8" x 2"
Keying5-pin tumbler, C Keyway, 1 key included
CodesPre-set, unique 6-digit programming code, two pre-set unique 4-digit access codes, 30 code capacity
Battery Cell TypeUses 4 AA alkaline batteries
Warranty3-Year Electronics Warranty and Limited Lifetime Mechanical and Finish Warranty
Operating TemperaturesOperating Temperatures: Outside escutcheon: -35C to 66C,Inside escutcheon: -10C to 49C
Exterior Dimensions3" x 5" x 1"
Backset (in)Universal latches and deadbolts fit 2-/8" (60mm) or 2-3/4" (70mm) backsets.
Door Thickness1-3/8" (35 mm) to 1-3/4" (44 mm)
Certifications ANSI/BHMA A156.40-2015 Grade AAA in Security, Durability and Finish
ANSI/BHMA A156.36-2010 Grade 1
